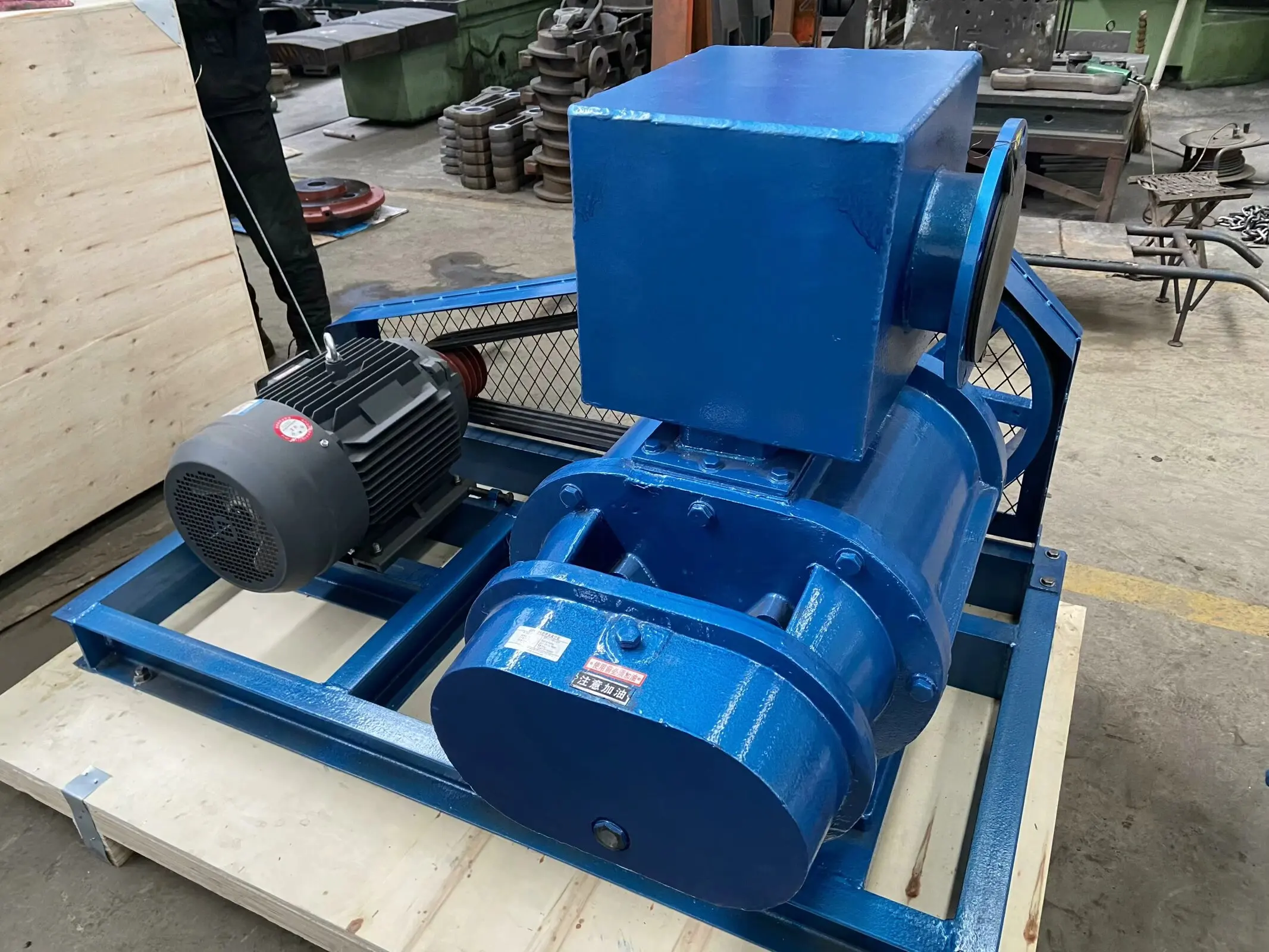

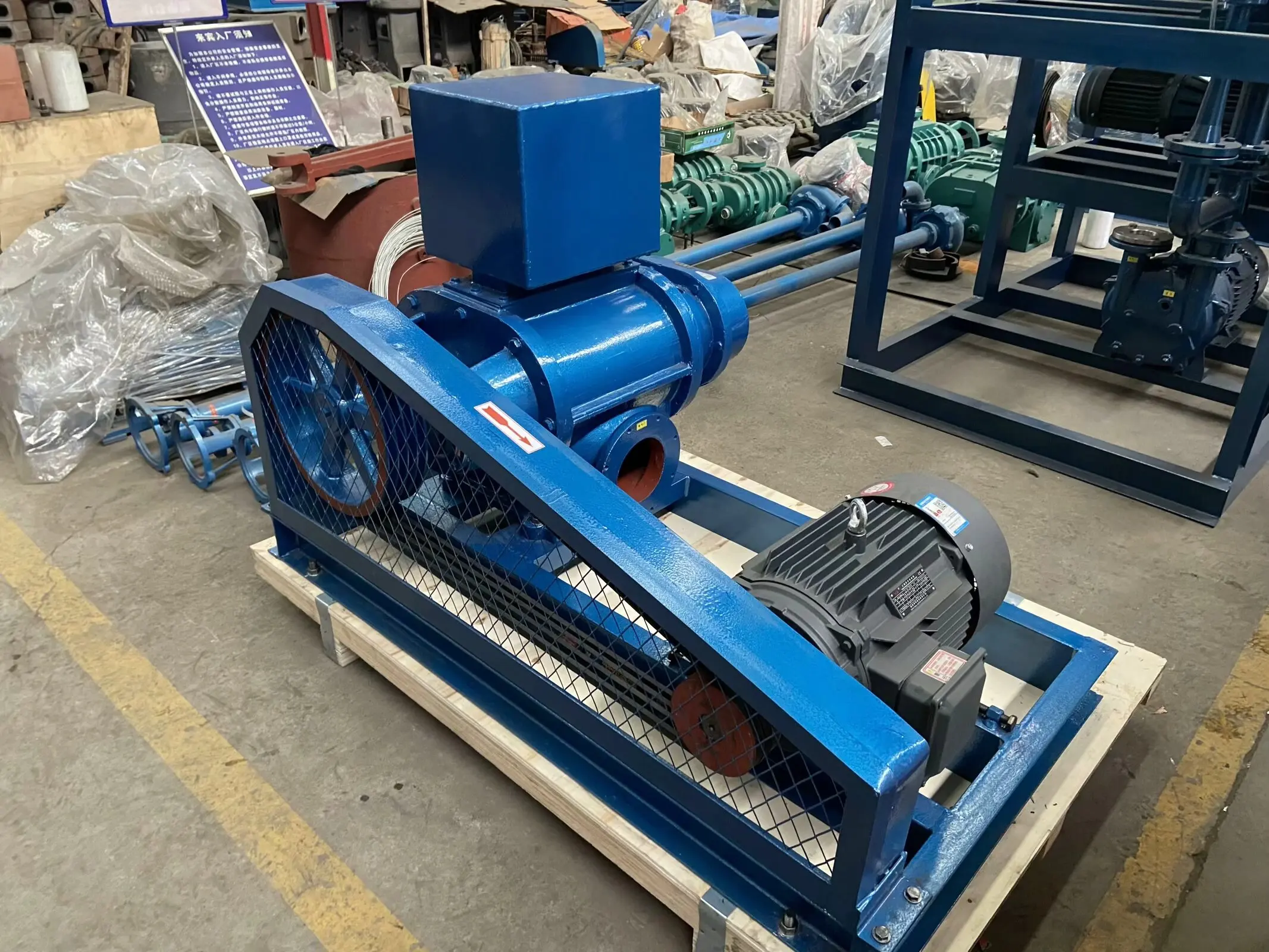

ZBK Roots Vacuuum Pumps

ZBK series roots vacuum pump (SV series paper special vacuum pump) is a kind of coarse vacuum acquisition of equipment, it is widely used in papermaking, paper holder, paper pulp molding, chemical industry, medicine, building materials, food, clothing, sugar and other industries, is paper industry slotted network of suction box or long nets paper machine net of suction box vacuum dewatering ideal equipment.

In this range ZBK series roots vacuum pump and water ring vacuum pump, which was compared pumping speed, high efficiency, compact structure, small volume, convenient maintenance, long service life, low power consumption. Suction medium for dry, wet air or water mixture, but to be contained in the medium granular material, high dust gas or corrosive substances.
Machine this department by motor through the triangle pulley drive active rotor rotation, and through the synchronous gear drive driven gear drive driven rotor rotation, the two rotor mutual contact, and keep the 0.4 mm or so bance quantity. Rotor and pump body and plate respectively between keep 0.25 mm or so bance quantity. In the process of operation, in the pump cavity lower, because the two rotor continuous separation, cause volume expansion, on the top because of two rotor continuous tap into cause volume contrb, thus completing suction, exhaust gas, and the effect of the suction side vacuumize, and exhaust side and atmospheric conduction, close to the atmosphere. Pump body export has a sound attenuation box, and at the same time a stable pressure, sealing b to improve the pump efficiency.

Roots vacuum pump is characterized by: quick start, less power consumption, low operation and maintenance costs, pumping speed, high efficiency, to be pumped gas contained in a small amount of steam and dust is not sensitive, in the range of 100 ~ 1 pa pressure has a large pumping rate, can quickly exclude the sudden release of air. Widely used in petroleum, chemical, bllurgy, textile, papermaking and other industries.

About Us

As an expert in air systems, Greentech has become one of most successful suppliers of  blower and vacuum pump in China with more than 20 years experience in R&D and marketing. We have an extensive team of engineers to provide technical back up to all clients as well as a large manufacturing base for blower and vacuum pump. Our products range from Roots Blowers (also call PD blower), Side Channel Blowers (also call ring blower or regenerative blower), Vacuum Pumps (liquid ring vacuum pump, also call water ring vacuum pump), Multistage Centrifugal Blowers, Single Stage High Speed Centrifugal Blowers, rotary valve, pneumatic conveying system, Centrifugal Fans, Industry Pumps, and Electric Products etc.

Service

1.Rapid reply; Any inquiry or question will be replied within 24 hours
2.Strict quality control; Every product will be checked before shipment
3.Competitive price and considerate service; Factory direct sale with competitive price

Packing&Shipping

Payment details:T/T or L/C
